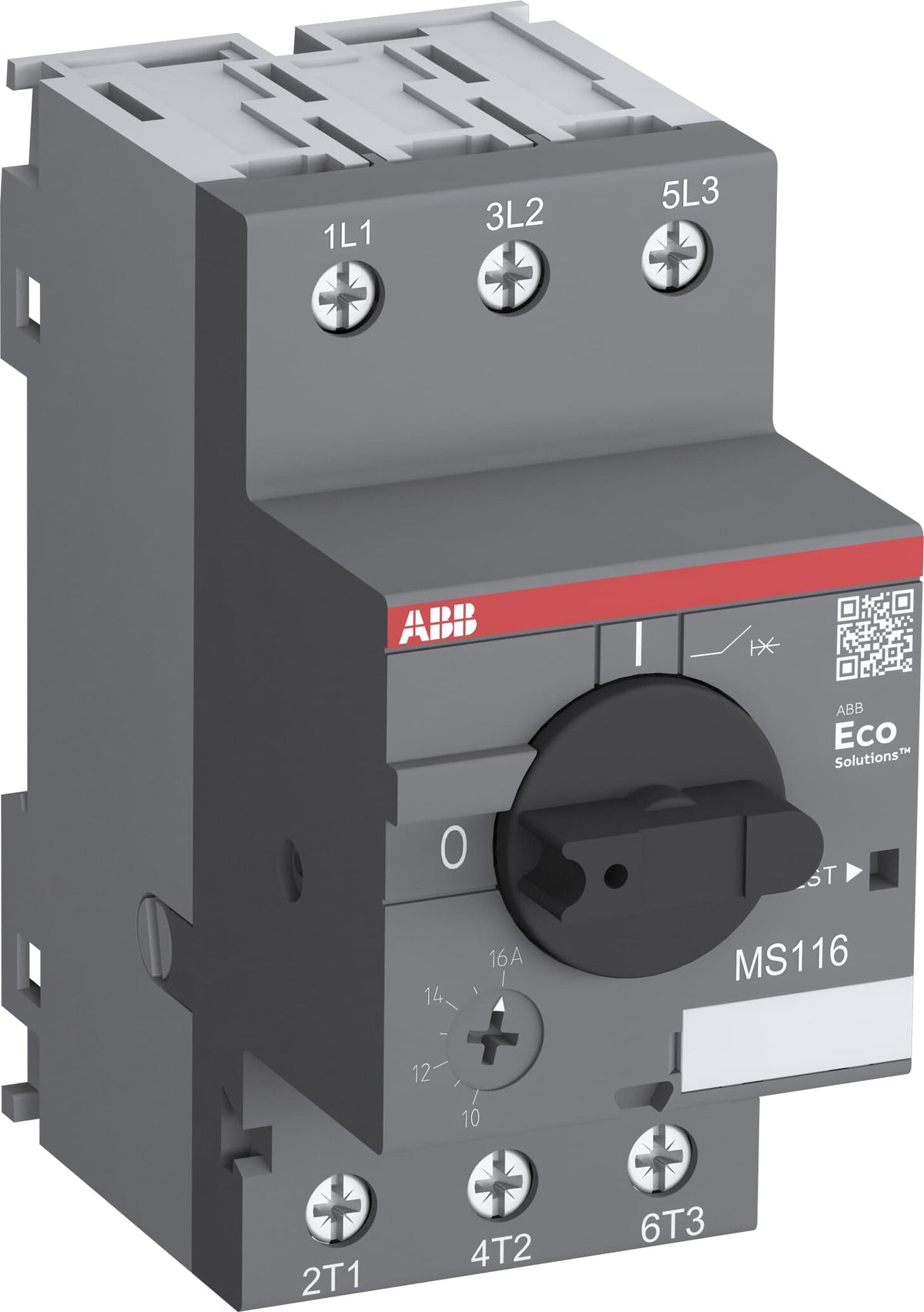

ABB 1SAM250000R1010 | MS116-10 Manual Motor Starter, 6.3-10A Current Range

ABB MS116-10 manual motor starter - 6.3 to 10 A

ABB 1SAM250000R1010 is an ABB MS116-10 manual motor starter for motor protection, local motor switching and low-voltage control panel assembly. The ABB part number 1SAM250000R1010 is selected for motors with full-load current in the 6.3 to 10 A range, making it suitable for pumps, fans, compressors, HVAC systems, conveyors, small machines and factory maintenance panels.

The MS116 frame is a compact 45 mm ABB manual motor starter range for dependable motor branch protection in compact control panels. As a manual motor protector, ABB 1SAM250000R1010 combines overload protection, short-circuit protection, phase-failure protection, a disconnecting function, temperature compensation, a trip-free mechanism and a clear rotary operating handle.

The MS116-10 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 10.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 VAC and trip class 10A.

Why engineers choose ABB 1SAM250000R1010

• Correct ABB part number and SKU: 1SAM250000R1010.
• Current range: 6.3 to 10 A for accurate motor full-load-current matching.
• Used as an MPCB, manual motor starter and motor protection circuit breaker in electrical panels.
• Suitable for panel builders, contractors, maintenance teams and procurement engineers in Egypt.
• Compatible with ABB manual motor starter accessories such as auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, busbars and locking devices where applicable.

Technical specifications

Order ABB 1SAM250000R1010 / MS116-10 from Spark for clear product identification, professional electrical supply, motor protection and control panel projects.
